High-Performance Flame Supervision

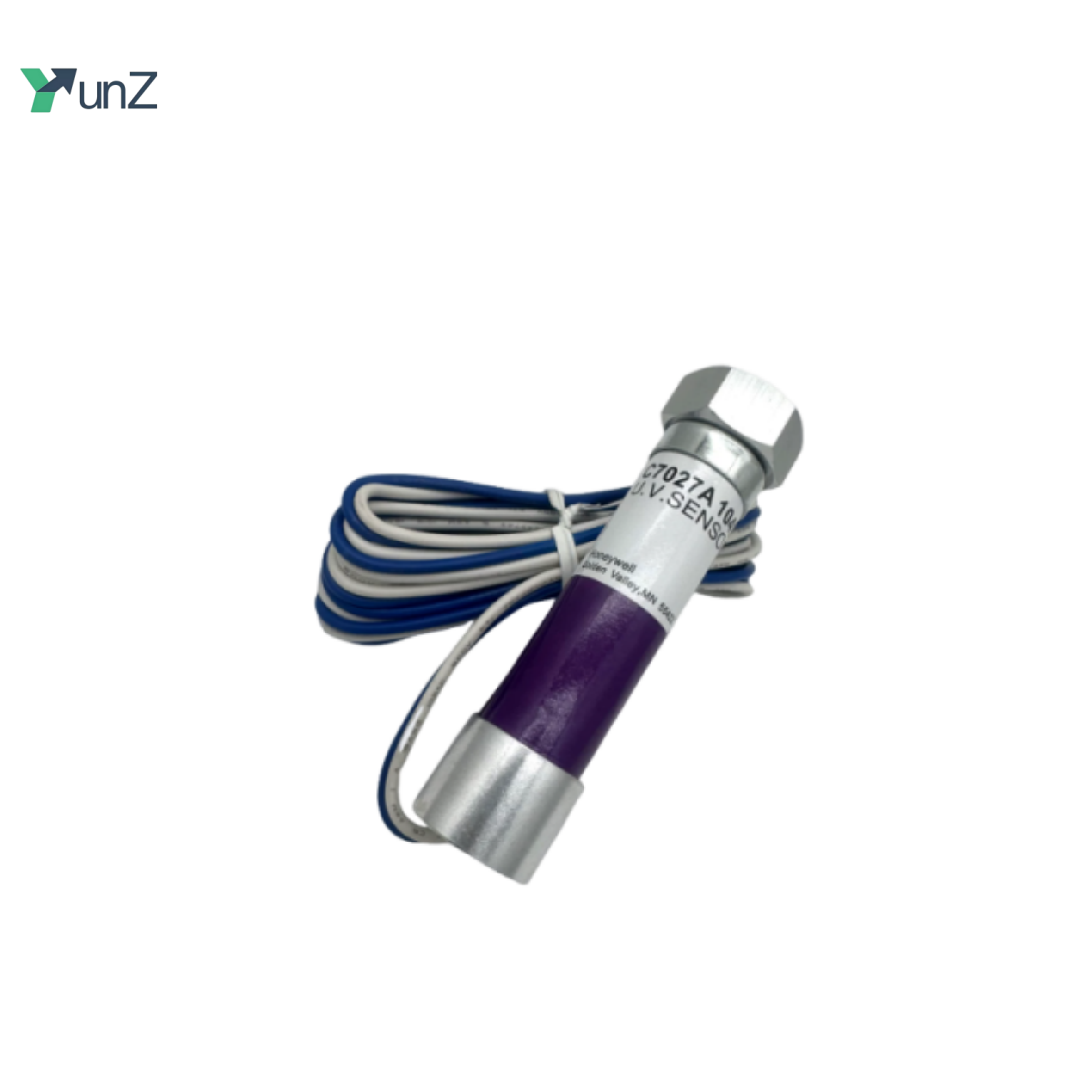

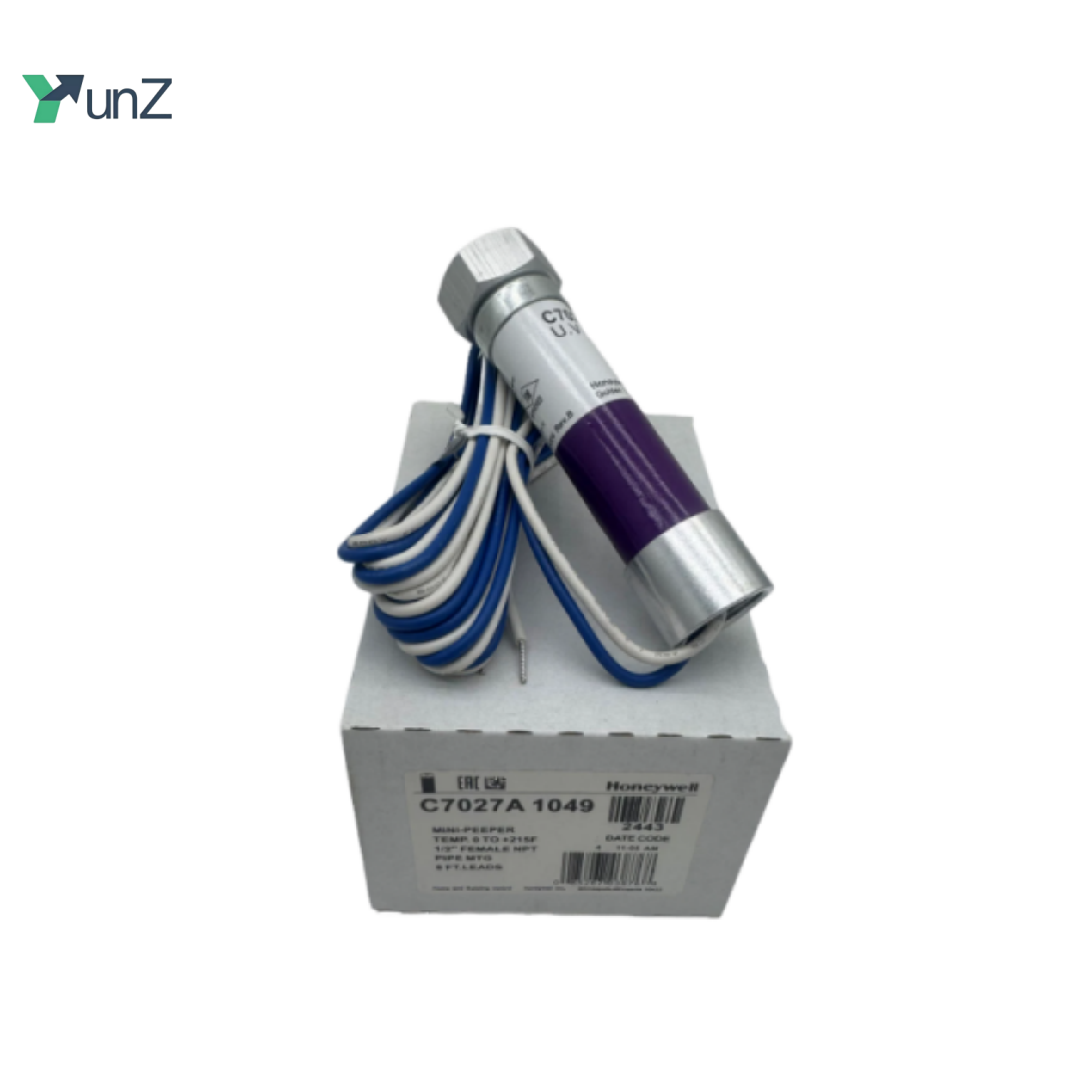

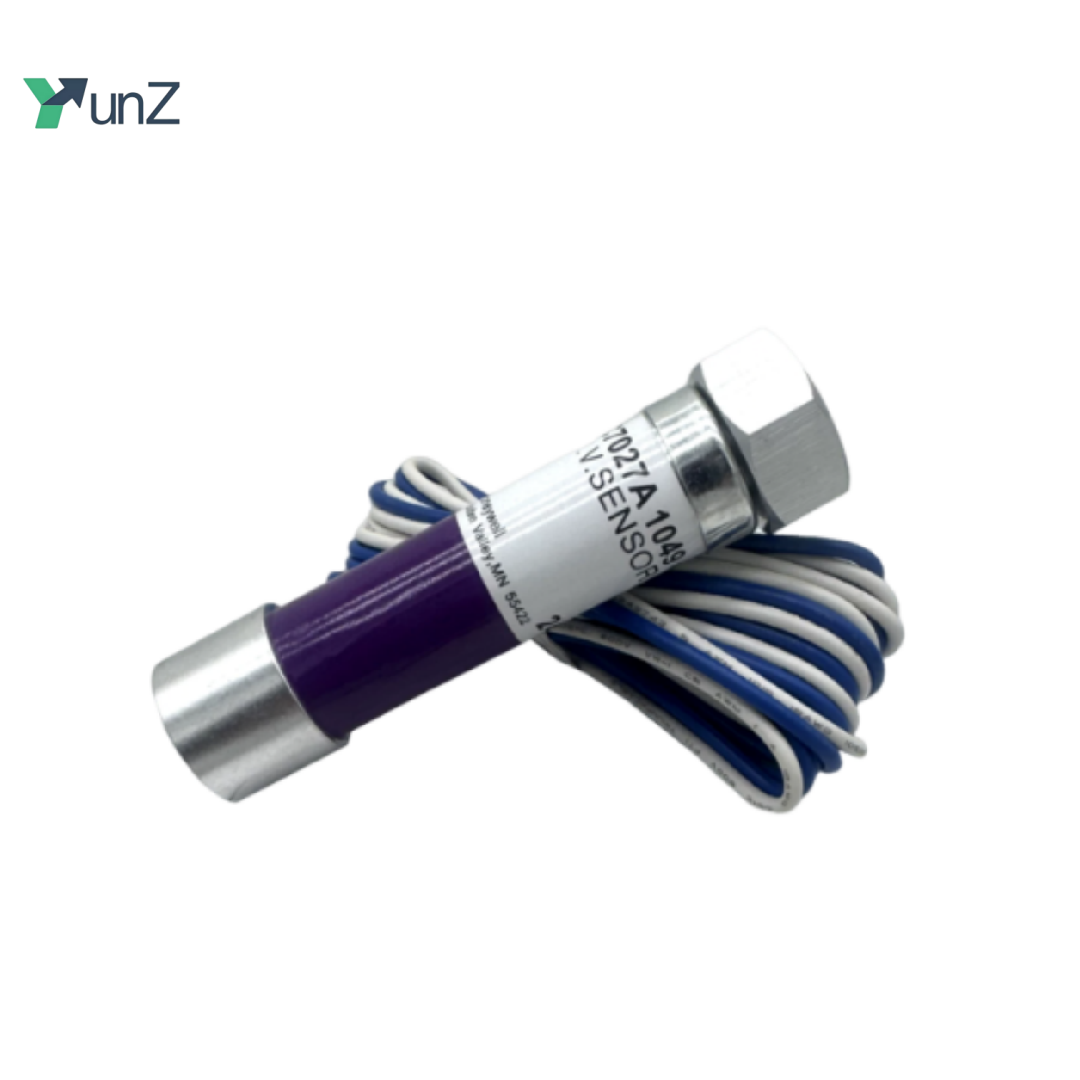

The C7027A1049 ultraviolet flame detector delivers precision monitoring for gas, oil, or combination gas-oil burners. This industrial-grade C7027A1049 sensor identifies invisible UV radiation generated during combustion while ignoring hot refractory backgrounds to prevent false triggers. Operating seamlessly with flame safeguard controls and ultraviolet amplifiers, the C7027A1049 scanner provides instantaneous flame status feedback for boilers, furnaces, and processing plants.
Rugged Architecture and Seamless Mounting
Featuring an incredibly compact design, the C7027A1049 Minipeeper allows for flexible mounting directly onto a blast tube or a 1/2-inch sighting pipe. When properly installed, the rugged C7027A1049 enclosure seals efficiently against positive blast pressures up to 5 psi (34.5 kPa). For complex or obscured viewing angles, multiple C7027A1049 detectors can be wired in parallel to maintain uninterrupted flame supervision across large industrial setups.
Technical Specifications
- Model Designation: C7027A1049
- Detection Type: Ultraviolet (UV) light sensing
- Sighting Configuration: End viewing scanner tube
- Mechanical Connection: 1/2 inch NPT threaded spud connector
- Electrical Leadwires: Two 96-inch (2438 mm) plastic-insulated 18 AWG leads
- Ambient Operating Temperature: 0°F to 215°F (-18°C to 102°C)
- Maximum Pressure Rating: 5 psi (34.5 kPa)
- Control Device Compatibility: Engineered for R7249A, R7290A, R7749B, and R7849A/B flame amplifiers
