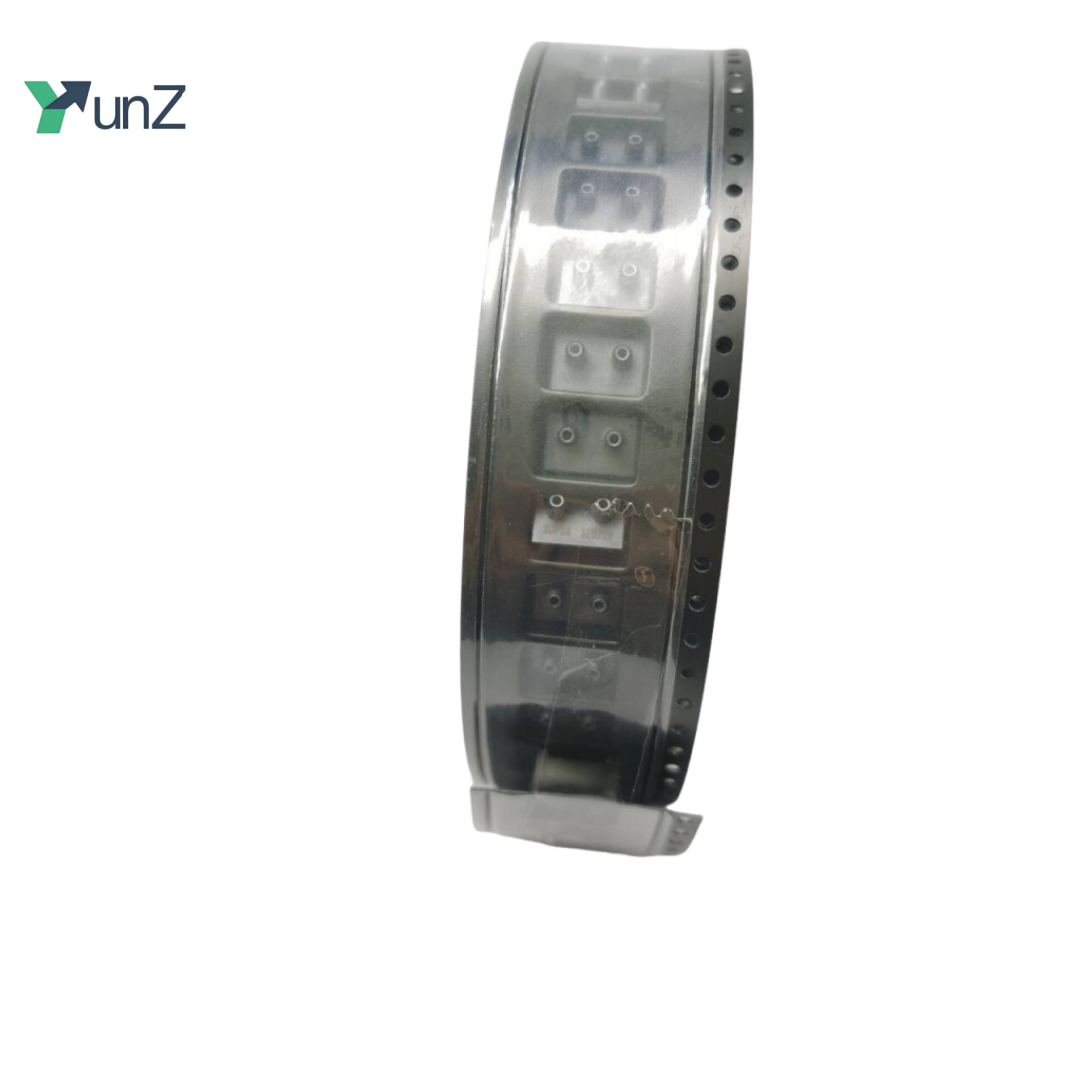

The SDP33-1500PA is a high-precision digital differential pressure sensor engineered specifically for high-volume consumer and industrial applications where small size and reliable performance are critical. This advanced component utilizes proprietary CMOSens technology to combine the thermal sensor element with advanced signal processing on a single microchip, ensuring excellent long-term stability and outstanding accuracy even at extremely low pressure differences.
This low-power sensor features a fully calibrated and temperature-compensated digital output, making it highly versatile for demanding systems such as medical ventilators, respiratory medical equipment, and unmanned aerial vehicle airspeed sensing. With its reflow solderable surface-mount design, it easily integrates into mass-production automated assembly lines.
Technical Specifications:
- Measurement Range: Minus 1500 to Plus 1500 Pascals
- Sensor Technology: CMOSens thermal mass flow principle
- Digital Interface: Standard Inter-Integrated Circuit protocol
- Signal Output Resolution: Fully calibrated sixteen bit readings
- Internal Sampling Speed: Up to two kilohertz update rate
- Calibrated Accuracy: Within three percent of the actual reading
- Zero Point Drift: Zero offset drift over entire product lifetime
- Temperature Compensation Range: Minus forty to Plus eighty-five Celsius
- Operating Supply Voltage: Two point seven to Five point five Volts
- Physical Packaging Dimensions: Five by Eight by Five millimeters SMT
- Compatible Media Types: Non-aggressive gases including air nitrogen oxygen
Contact Us:
If you need technical support, bulk purchasing options, or specific engineering datasheets for the SDP33-1500PA sensor, please contact our sales department.
If you need technical support, bulk purchasing options, or specific engineering datasheets for the SDP33-1500PA sensor, please contact our sales department.
