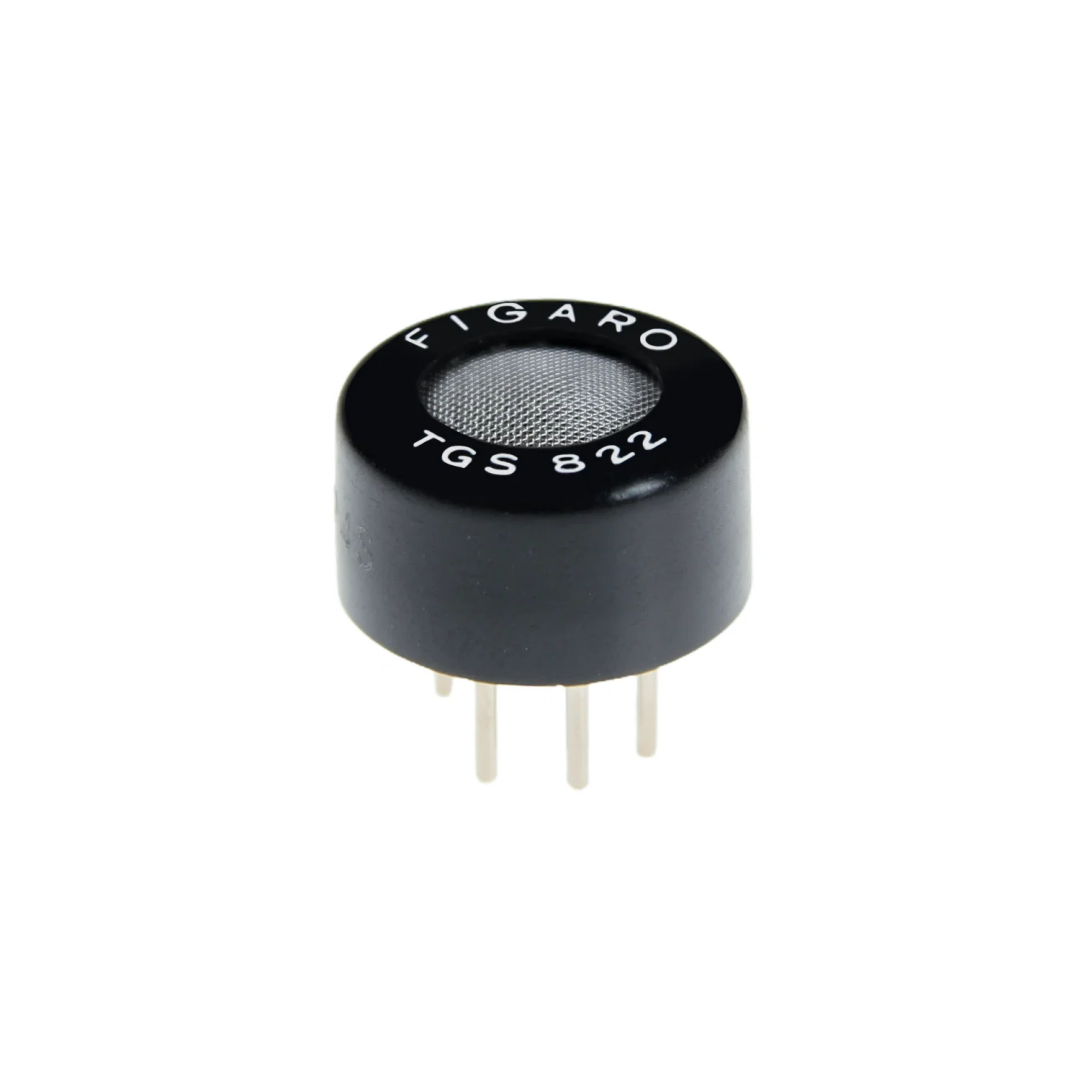

The tgs822 alcohol detector sensor is a premium metal oxide semiconductor (MOS) gas sensor designed by Figaro, utilizing advanced tin dioxide (SnO2) technology. In clean air, the sensor maintains a low conductivity, which increases rapidly as the concentration of target alcohol vapors rises. It offers an exceptional combination of quick response times, low power consumption, and long-term reliability, making it the industrial benchmark for breath alcohol analyzers, environmental monitors, and factory safety systems.
Key Product Features
-
- Exceptional Selectivity: High sensitivity specifically to ethanol and organic solvent vapors.
- Durability & Value: Cost-effective solution with a long operational lifespan.
- Simple Circuit Design: Easily integrated into standard electrical circuits with variable load resistance.
Technical Specifications & Parameters
To help you design and configure your system, here are the official datasheets parameters for this sensor:
To help you design and configure your system, here are the official datasheets parameters for this sensor:
| Parameter | Specification |
|---|---|
| Sensing Element | Tin Dioxide (SnO2) Ceramic |
| Measurement Range | 50 ~ 5,000 ppm (Ethanol) |
| Circuit Voltage (Vc) | Max. 24V AC or DC |
| Heater Voltage (Vh) | 5.0V ± 0.2V AC or DC |
| Heater Resistance (Rh) | 38.0 ± 3.0 Ω at room temperature |
| Heater Power Consumption | 660mW ± 55mW (Typical) |
| Sensor Resistance (Rs) | 1kΩ ~ 10kΩ (in 300ppm Ethanol) |
| Standard Test Conditions | 20°C ± 2°C, 65% ± 5% Relative Humidity |
Contact Us for Bulk Orders
We provide global shipping and technical support for all electronic components including the tgs822 alcohol detector. If you need wholesale pricing, customized specifications, or a full datasheet PDF, please Contact Us Here and our support team will respond within 24 hours.
We provide global shipping and technical support for all electronic components including the tgs822 alcohol detector. If you need wholesale pricing, customized specifications, or a full datasheet PDF, please Contact Us Here and our support team will respond within 24 hours.
