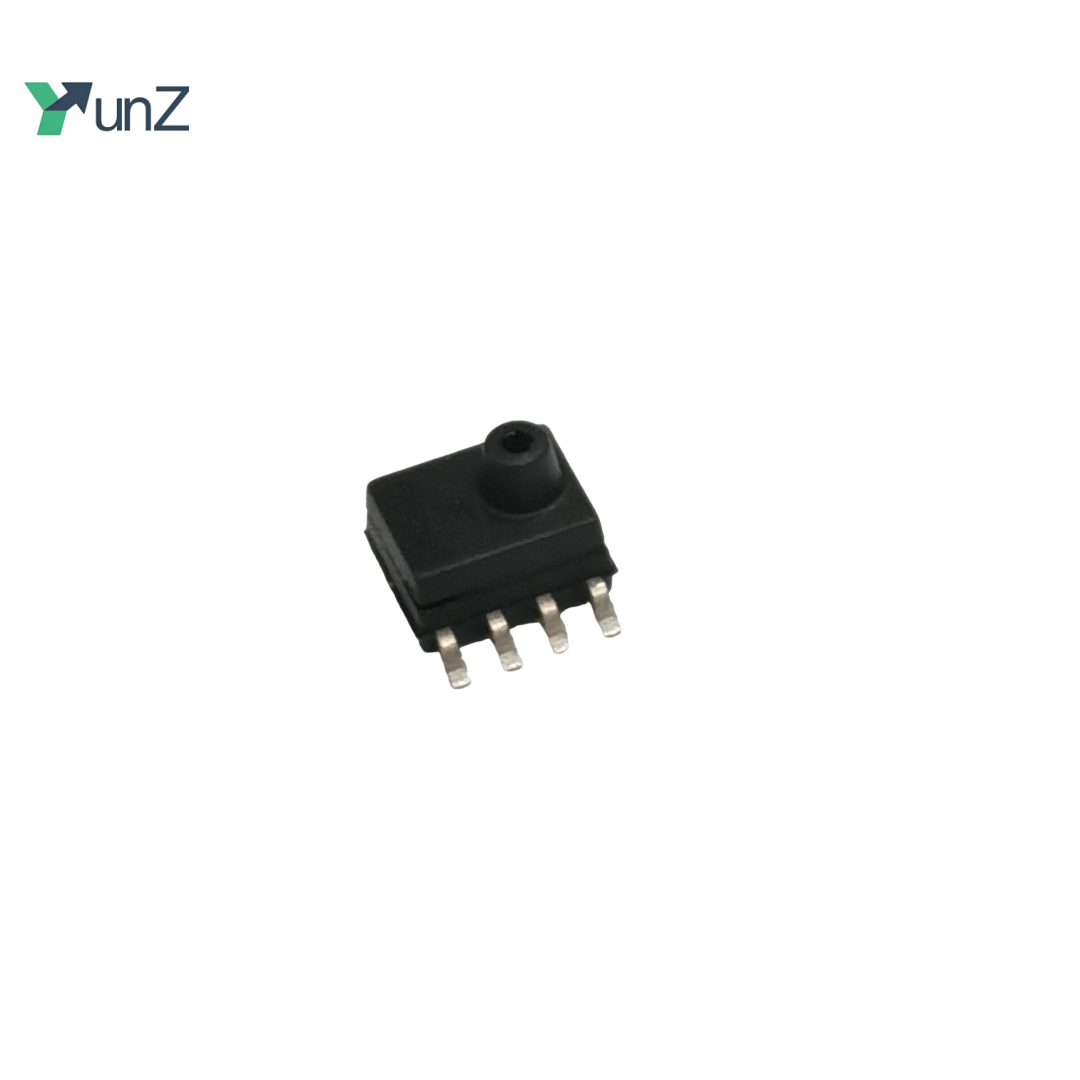

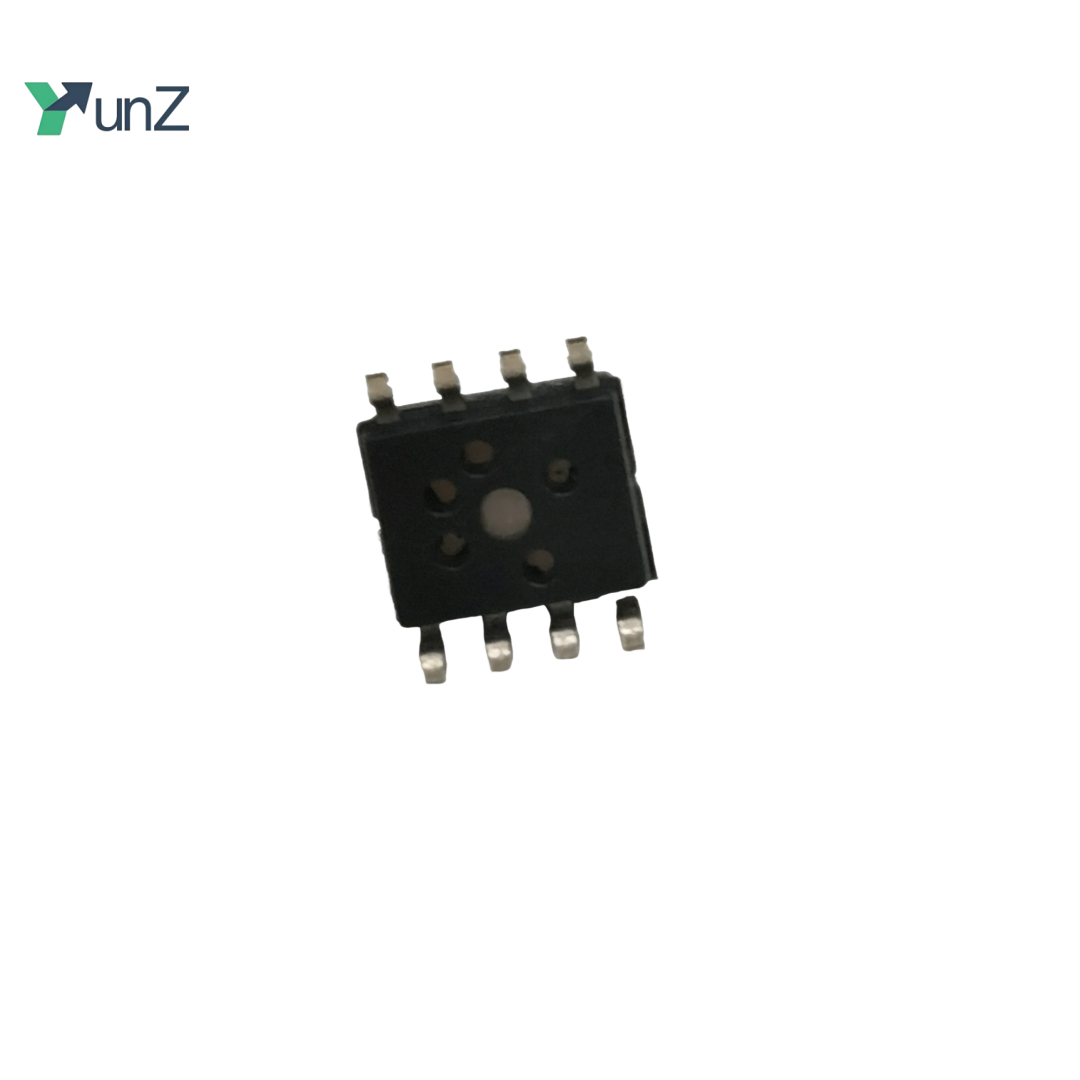

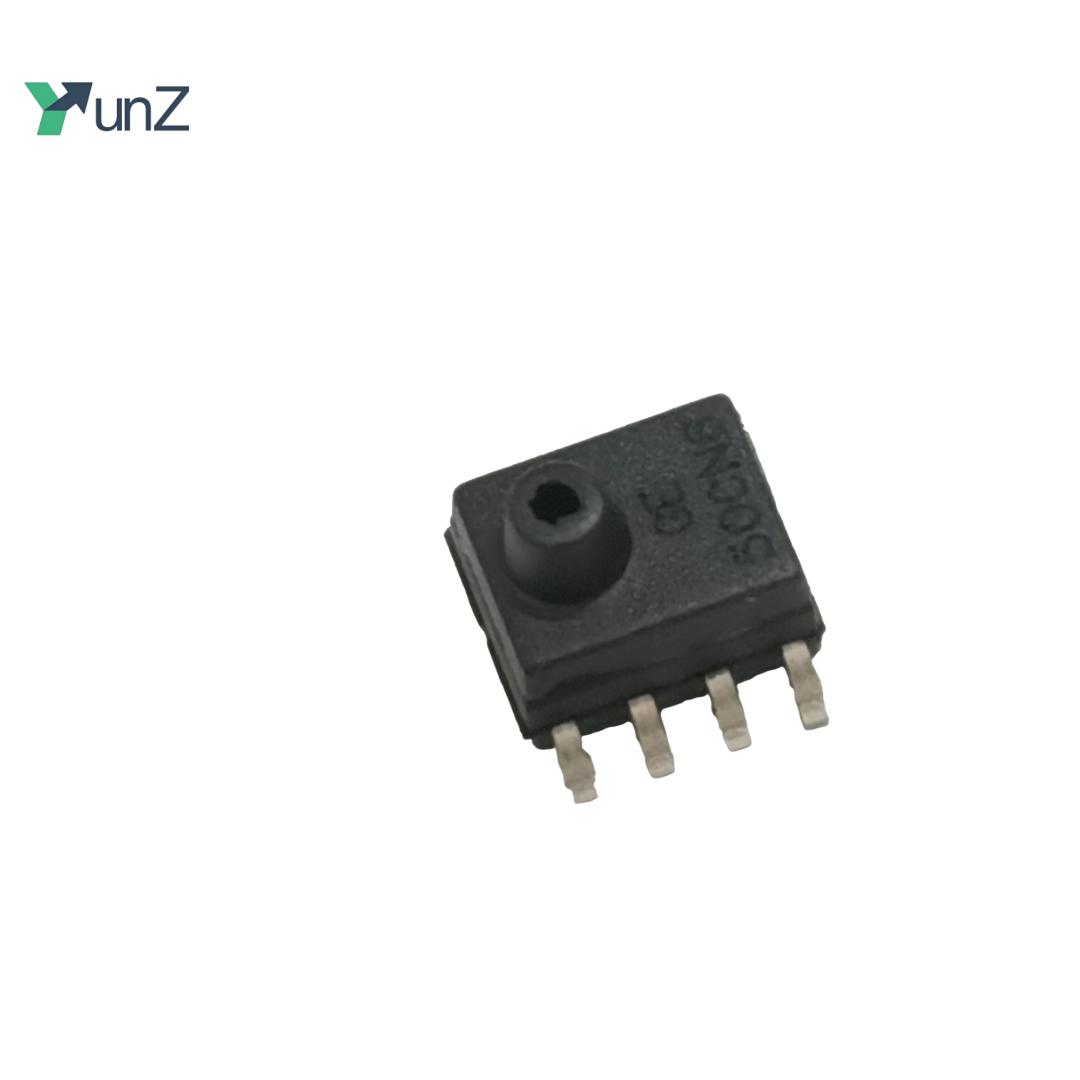

The NPP-301B-100A is a premier silicon absolute pressure sensor designed for high-volume, low-cost OEM applications. Utilizing NovaSensor SenStable piezoresistive chip technology, this component delivers ultra-high stability and solid-state reliability. The model features a specific dual ported design for direct tube connection, housing the advanced micro-machined silicon chip in a standard SOIC-8 plastic surface mount package. It converts pressure changes linearly into an analog voltage output with extreme accuracy.
Engineers and designers can easily integrate this component into various automated assembly systems. This sensor series supports wide temperature swings and maintains exceptional calibration consistency over time. Typical industrial use cases include pneumatic controls, cable leak detection, portable manometers, and automotive diagnostics.
Technical Specifications:
-
- Manufacturer: Amphenol Advanced Sensors / NovaSensor
- Part Number: NPP-301B-100A
- Pressure Type: Absolute
- Operating Pressure Range: 0 to 15 psia (103.42 kPa)
- Maximum Overpressure: 45 PSI (310.26 kPa)
- Output Type: Analog Voltage (Wheatstone Bridge)
- Output Signal: 0 mV to 60 mV (Typical at 3V Excitation)
- Excitation Voltage: 3.0 VDC (10 VDC Maximum)
- Input and Output Impedance: 5000 Ohms plus or minus 20 percent
- Static Accuracy: Less than 0.20 percent FSO Maximum
- Operating Temperature Range: -40 to 125 degrees Celsius
- Package / Case: 8-SOIC (0.154 inch, 3.90mm Width) with 0.08 inch Dual Port
- Mounting Type: Surface Mount (SMD / SMT)
- Media Compatibility: Clean, dry air and non-corrosive gases
