Overview

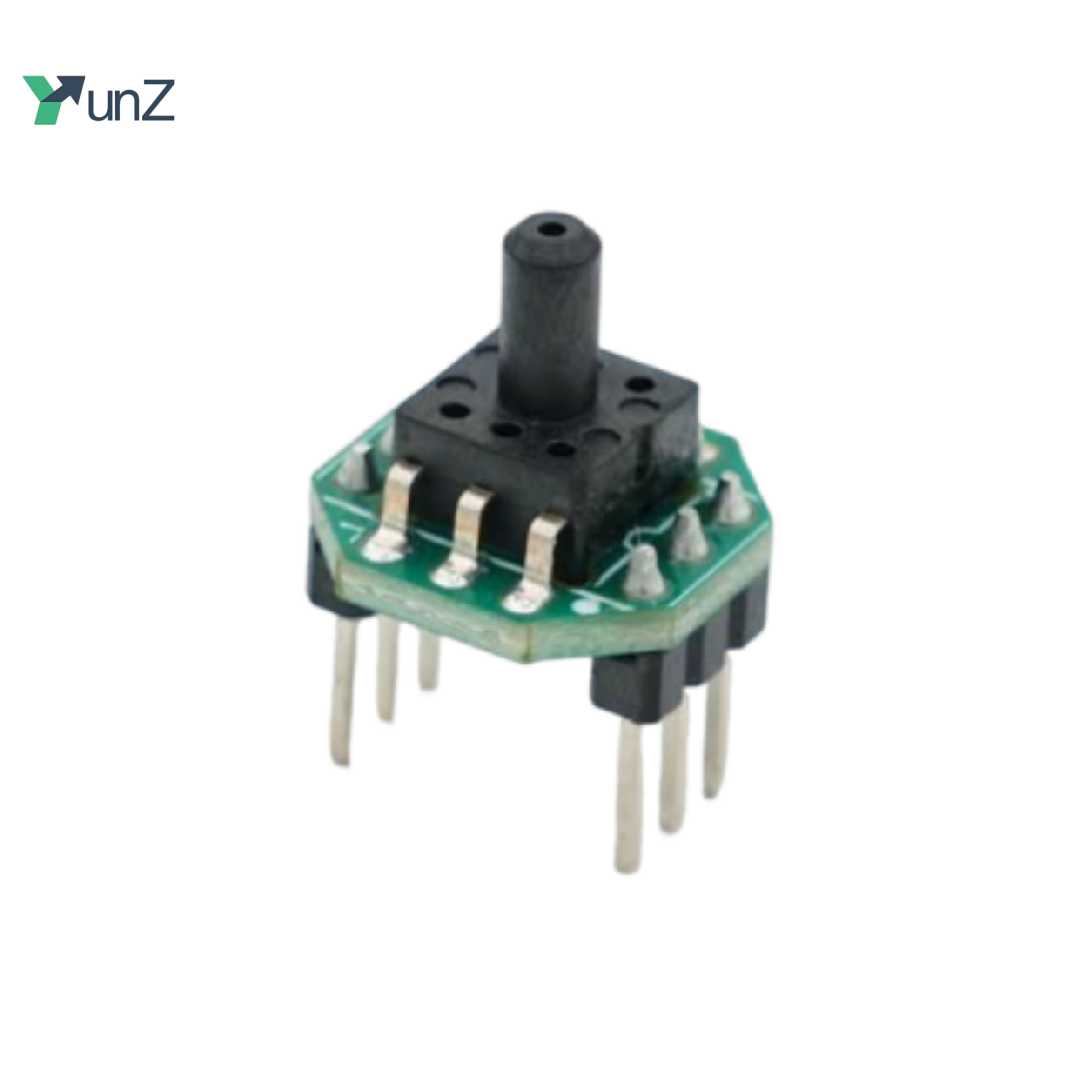

The XGZP6847D is a board-mountable, digital piezoresistive pressure sensor module engineered for dependable gauge pressure measurement. Encapsulated in a convenient DIP6 package with a built-in tube structure, it provides direct digital output via a standard I2C interface. The XGZP6847D comes fully pre-calibrated internally, ensuring outstanding long-term stability and high accuracy within a 2.5V to 5.5V supply voltage.
Key Features & Applications
* Direct Digital Interface: Low power consumption I2C output with 24-bit resolution.
* Versatile Applications: Perfect for medical monitors, tire pressure gauges, coffee machines, and industrial automation.
* Gas Compatibility: Specially designed for air and other non-corrosive gases.
Technical Specifications
* Sensor Type: Gauge Pressure (Positive & Vacuum)
* Pressure Range: -100kPa to 1500kPa
* Output Format: I2C Interface (24-bit Pressure / 16-bit Temp)
* Working Voltage: 2.5V – 5.5V DC
* Operating Temperature: -30C to +100C
